Cutting machines

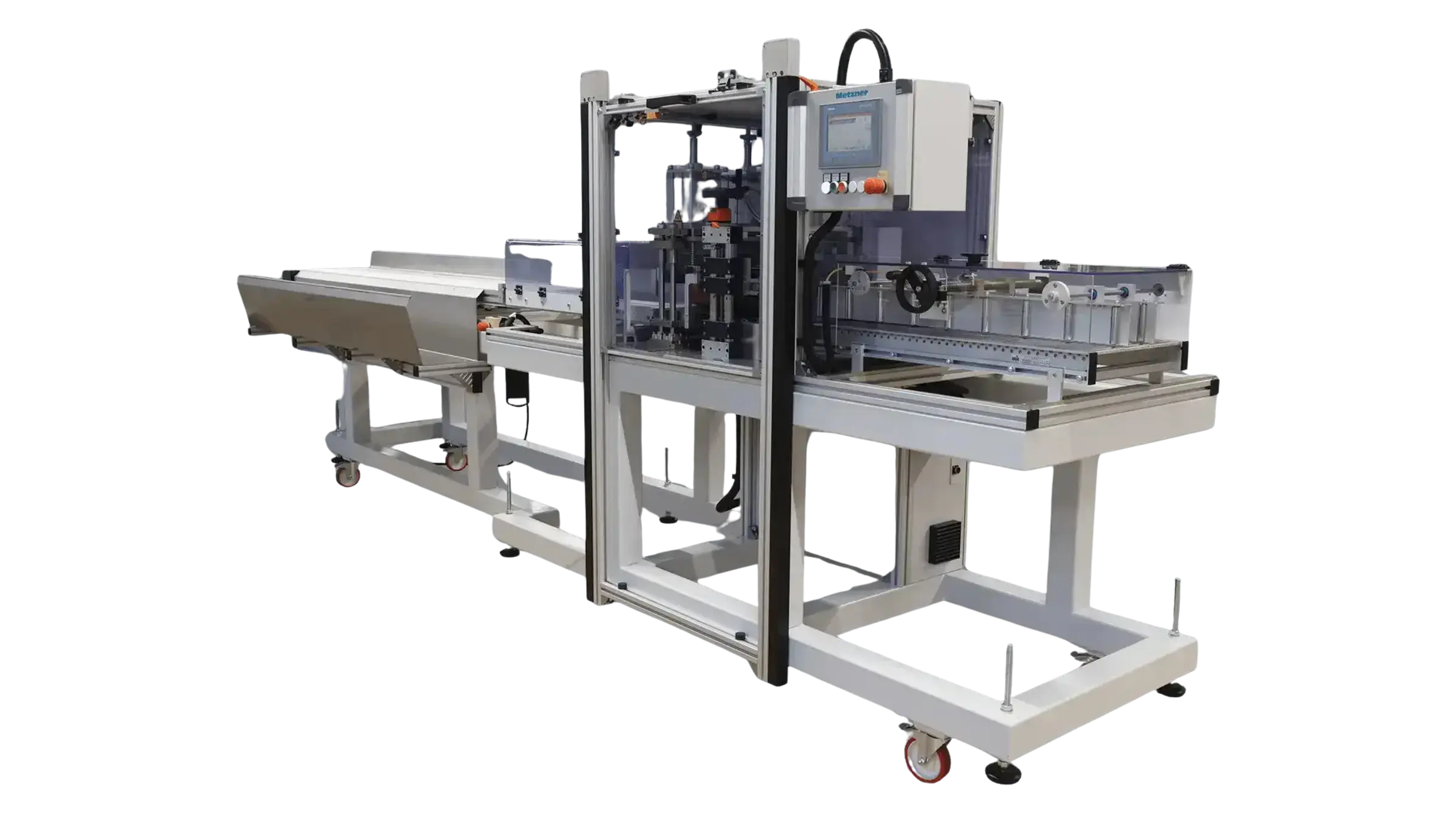

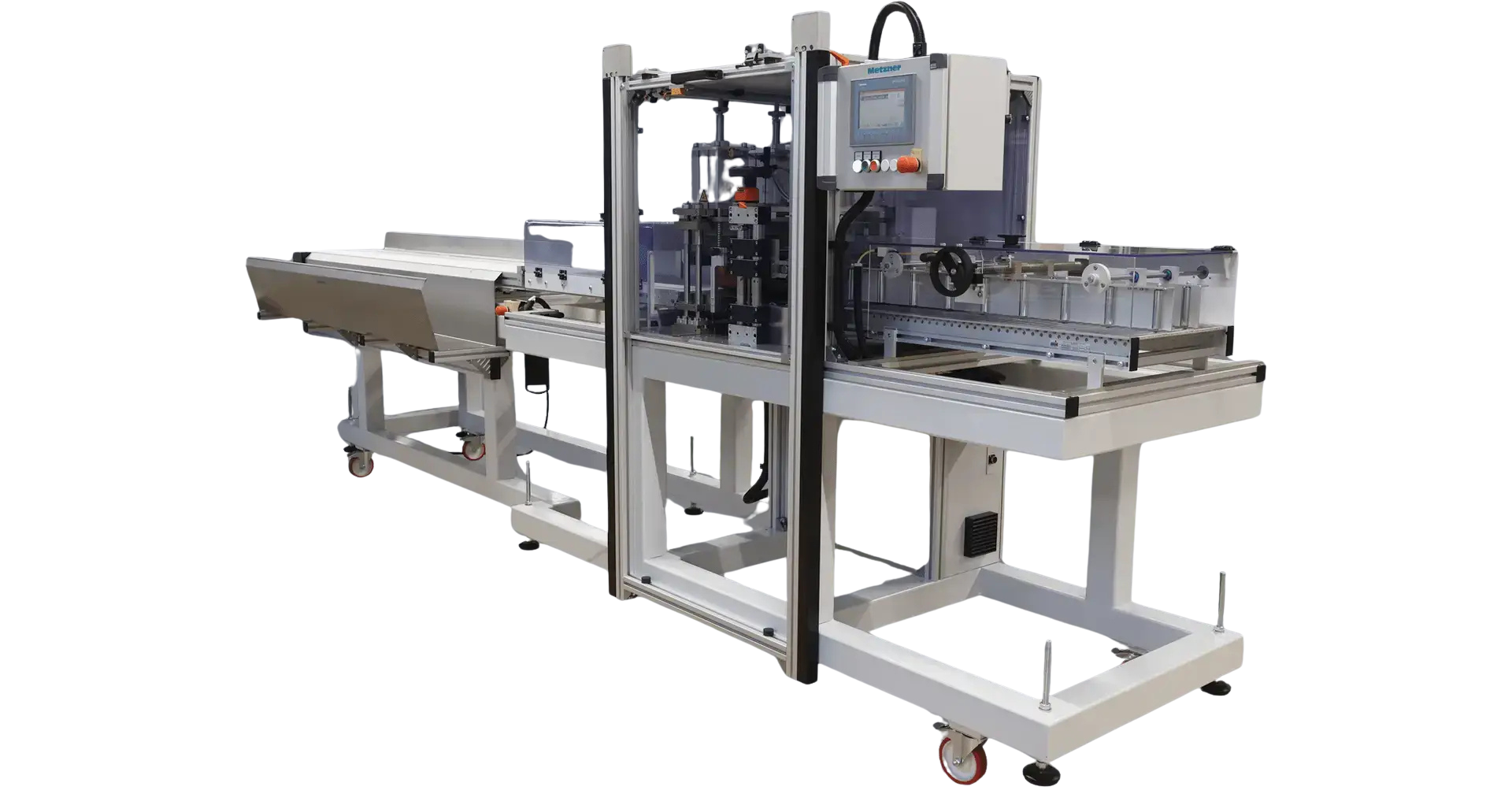

Metzner MBS-200

Multiple cutting processes in one machine, for materials up to 190mm diameter.

Configurable for Multi-Stage Processing

The Metzner MBS-200 is a modular multi-process system designed for materials up to 190 mm wide, enabling rapid integration of proven processing modules to match your product requirements. By combining multiple operations into one machine, it simplifies operator workload while delivering efficient, high-throughput, in-line processing.

Low development time
Existing processing modules allows quick integration to your exact product specification
Reduced operator cost
A single machine performing multiple tasks, adding efficency from a single operator
Increased performance
Capable of speeds up to 150 metres per minute, with a cut rate of 130 cuts per minute

More configurability without a large footprint

The Metzner MBS-200 is a modular multi-stage processing system for products that require more than standalone cut-to-length operation. It is designed for inline production where cutting must be combined with additional processing steps while maintaining stable feed, repeatable accuracy and efficient operator control.

This model sits in the middle of the MBS range, offering greater process scope than smaller systems while avoiding the footprint and width capacity of a large-format line. It is well suited to manufacturers processing profiles, hose, tubing or similar continuous materials where throughput, integration and consistent product handling are key requirements.

Machine choosing guide

Tell us about the material you're cutting, and we'll identify the most suitable cutting machines from our range.

MBS-200 datasheet
(pdf will download or open in a new tab)

Name	Value	Description
Machine Name	MBS-200
Cutting Accuracy	±1 mm + 0.2% of the cut length	Positional and repeatable cutting accuracy
Dimensions (LxWxH)	Customisedmm	Length x Width x Height
Electrical Input	230 Vac; 50/60 Hz; 10 A	Power supply requirements
Compressed Air Input	6 Bar, 87 PSI	Required compressed air connection
Noise (idle)	75dB	Noise level during idle operation
Material Width Max	190mm	Maximum width of material that can be processed
Material Height Max	80mm	Maximum height of material that can be processed
Material Diameter Max	80mm	Maximum diameter of material that can be processed
Feeding Speed Max	150m/min	Maximum feeding speed
Cutting Performance	130cuts/min	Maximum cutting performance
