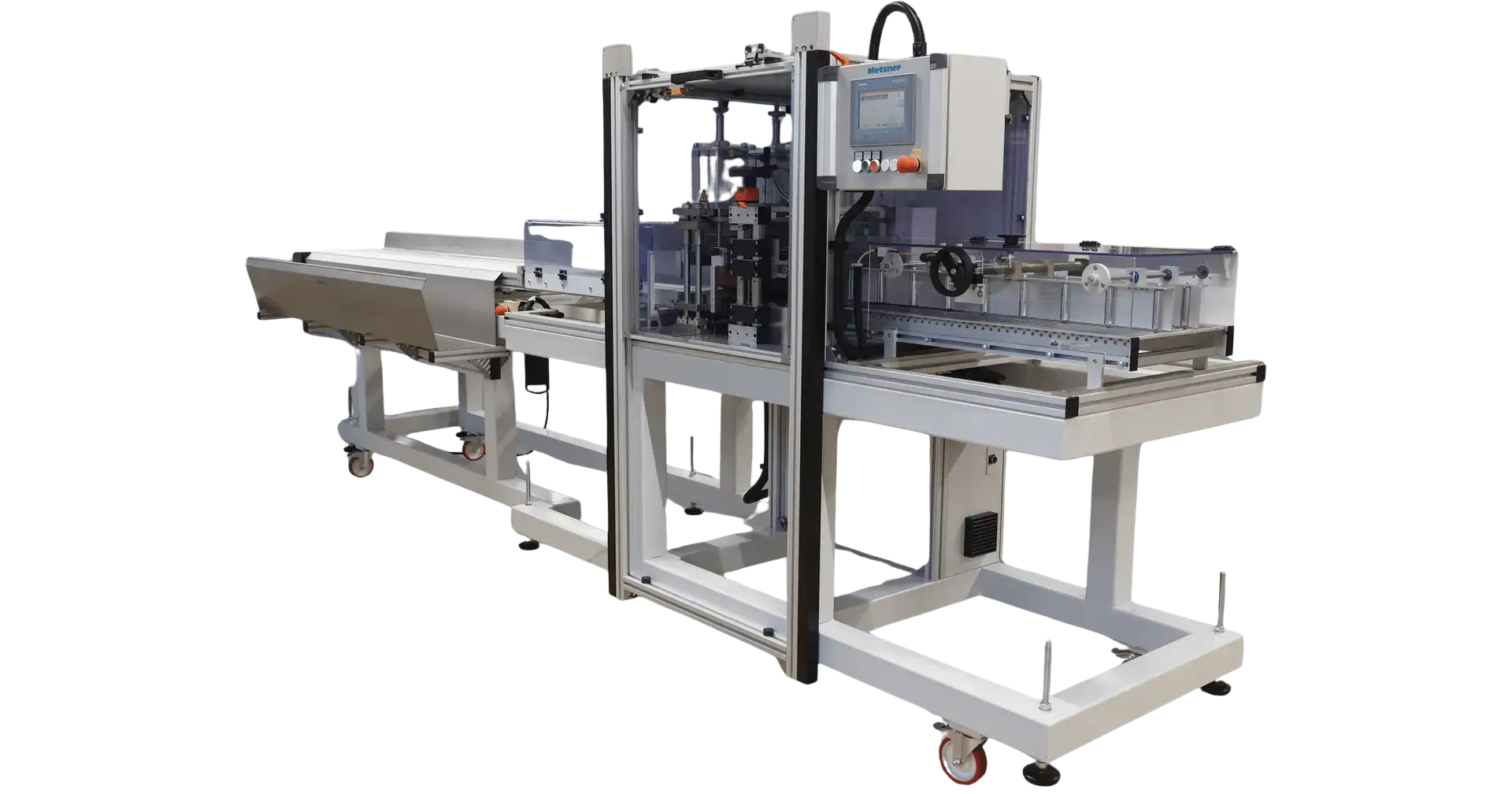

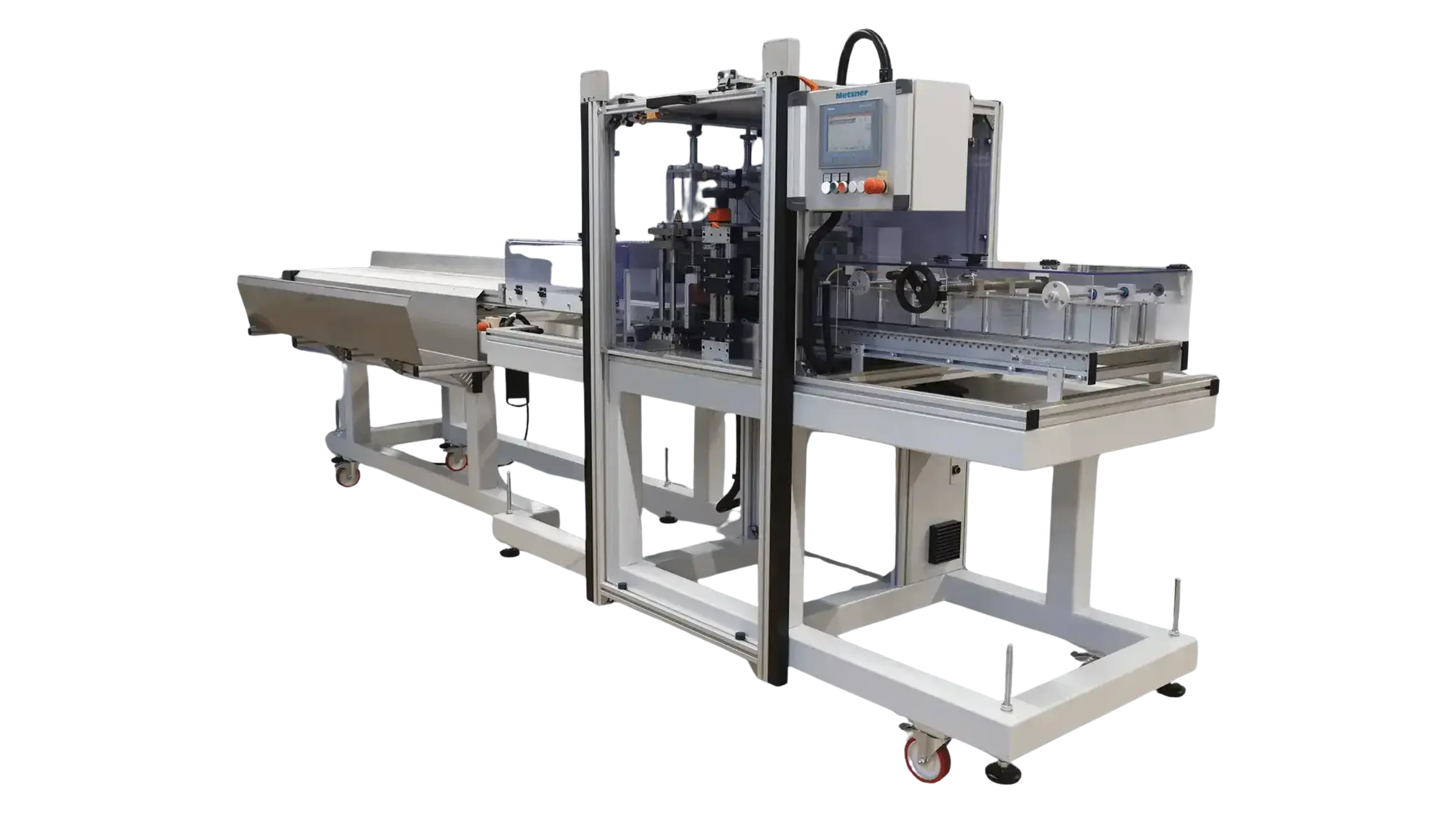

Metzner MBS-100

Multiple cutting processes in one machine, for materials up to 90mm diameter.

Modular Design for Versatile Configuration

The Metzner MBS-100 is a modular processing system that combines up to three tools in one machine, enabling cutting, drilling, printing and further operations within a single machine. With more than 10,000 configurations, it delivers an adaptable, high-throughput solution for materials up to 90mm wide.

Your machine for your product
More than 10,000 possible configurations of 10+ modules and tools.
End product from one machine
Simultaneous processing of your product within a single workflow. Drill, cut, print and more in a single machine
Maximise productivity
Capable of speeds up to 150 metres per minute, with a cut rate of 170 cuts per minute

The practical choice

The Metzner MBS-100 is a modular inline processing system for smaller material widths where several operations need to be combined within one controlled production sequence. It is typically specified where cutting must be integrated with additional stages such as marking, punching, drilling or similar product-specific processes.

The machine is suited to manufacturers who need repeatable handling, compact line design and the flexibility to configure the process around the product. Compared with larger MBS systems, the MBS-100 is the more practical choice where installation space, material size and process scope do not justify a wider or higher-capacity platform.

Machine choosing guide

Tell us about the material you're cutting, and we'll identify the most suitable cutting machines from our range.

MBS-100 datasheet
(pdf will download or open in a new tab)

Name	Value	Description
Machine Name	MBS-100
Cutting Accuracy	±1 mm + 0.2% of the cut length	Positional and repeatable cutting accuracy
Dimensions (LxWxH)	Customisedmm	Length x Width x Height
Electrical Input	230 Vac; 50/60 Hz; 10 A	Power supply requirements
Compressed Air Input	6 Bar, 87 PSI	Required compressed air connection
Noise (idle)	75dB	Noise level during idle operation
Material Width Max	90mm	Maximum width of material that can be processed
Material Height Max	80mm	Maximum height of material that can be processed
Material Diameter Max	80mm	Maximum diameter of material that can be processed
Feeding Speed Max	150m/min	Maximum feeding speed
Cutting Performance	170cuts/min	Maximum cutting performance
