Cutting machines

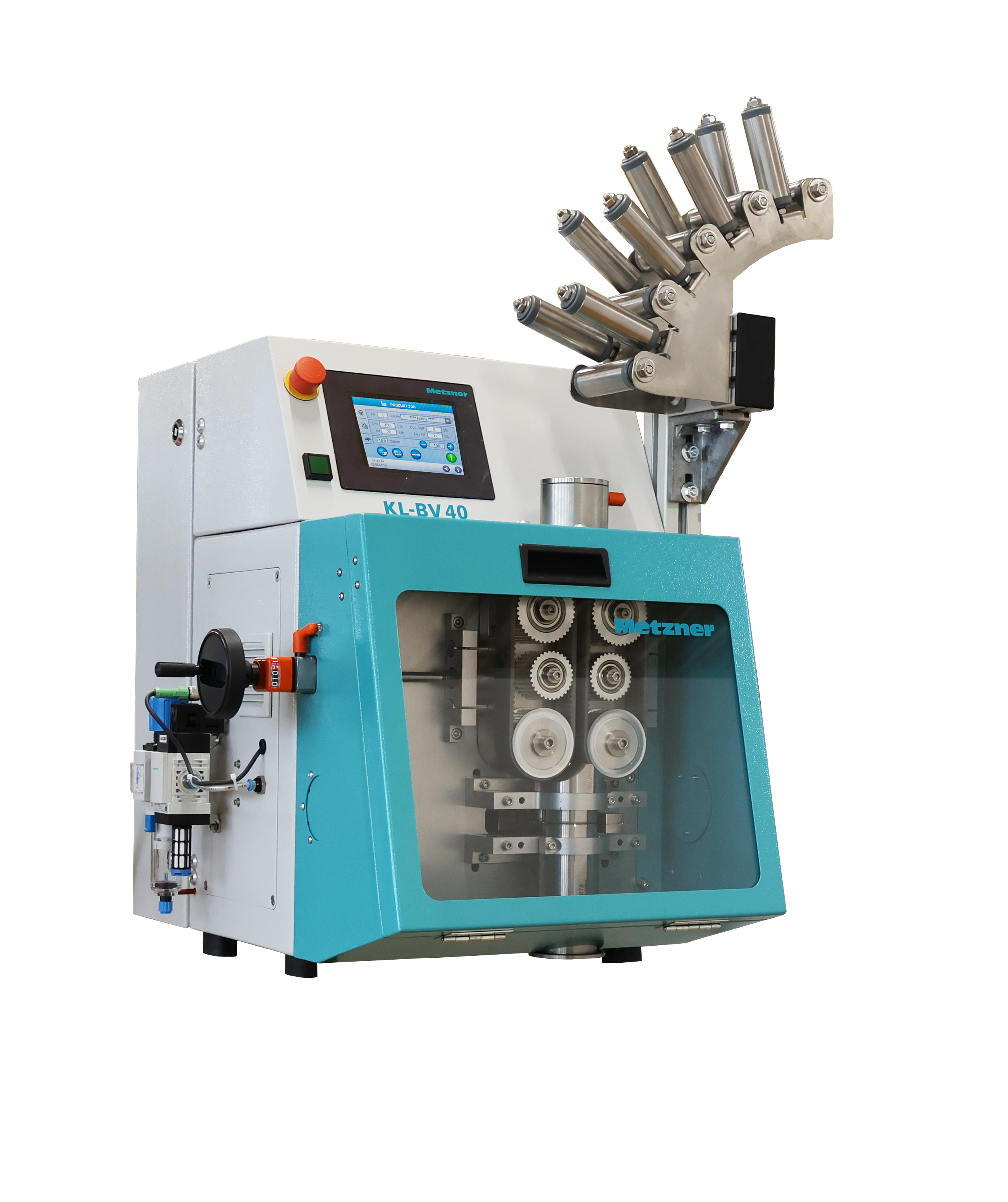

Metzner KL-BV40

High repeatability of cut lengths with high tolerance

Precision Cutting for Larger Sensitive Materials

The Metzner KL-BV40 is a high-precision cutting machine engineered for larger elastic, pressure-sensitive and soft materials up to 40 mm diameter, including thick tubing, profiles and flexible extrusions. Its finely controlled belt feed, ultra-thin blade technology and low-pressure handling deliver clean, deformation-free cuts even on bulky or highly elastic products.

Maximise productivity
Feedrate of 60 metres per minute, with a cut rate of 100 cuts per minute
Reduce waste & rework
Repeat accuracy within 0.2% of the cut length
Minimal material strain
Minimal material stress due to precise pressure control and long belt feed
Reliable for elastic material
Designed specifically for elastic and sensitive materials up to 40 mm, maintaining accuracy without deformation or squeezing
Operator friendly
Intuitive touch screen controls and PLC integration simplify complex tasks and training even for less experienced operators
Adapts to your production line
Available in a vertically working version for all static materials since product leaves the machine with the force of gravity

The large-diameter option for bulky elastic and flexible materials

The Metzner KL-BV40 is a precision belt-feed cutting machine engineered specifically for larger elastic, pressure-sensitive and soft materials up to 40 mm diameter, including thick tubing, bulky profiles and flexible extrusions where standard smaller-capacity machines are not suitable. Its finely controlled belt feed, ultra-thin blade technology and low-pressure handling maintain clean, deformation-free cuts even on oversized or highly elastic products.

The machine is suited to manufacturers working with larger-format flexible materials that exceed the capacity of the standard KL-BV. Compared with the KL-BV, the KL-BV40 handles more than double the maximum material diameter, trading the higher cut rate of the standard model for the ability to process bulkier cross-sections without deformation or dimensional loss.

Machine choosing guide

Tell us about the material you're cutting, and we'll identify the most suitable cutting machines from our range.

KL-BV40 datasheet
(pdf will download or open in a new tab)

Name	Value	Description
Machine Name	KL-BV40
Cutting Accuracy	±1 mm + 0.2% of the cut length	Positional and repeatable cutting accuracy
Dimensions (LxWxH)	400 x 582 x 605mm	Length x Width x Height
Electrical Input	230 Vac; 50/60 Hz; 10 A	Power supply requirements
Compressed Air Input	6 Bar, 87 PSI	Required compressed air connection
Noise (idle)	75dB	Noise level during idle operation
Material Width Max	0mm	Maximum width of material that can be processed
Material Height Max	100mm	Maximum height of material that can be processed
Material Diameter Max	40mm	Maximum diameter of material that can be processed
Feeding Speed Max	60m/min	Maximum feeding speed
Cutting Performance	40cuts/min	Maximum cutting performance
