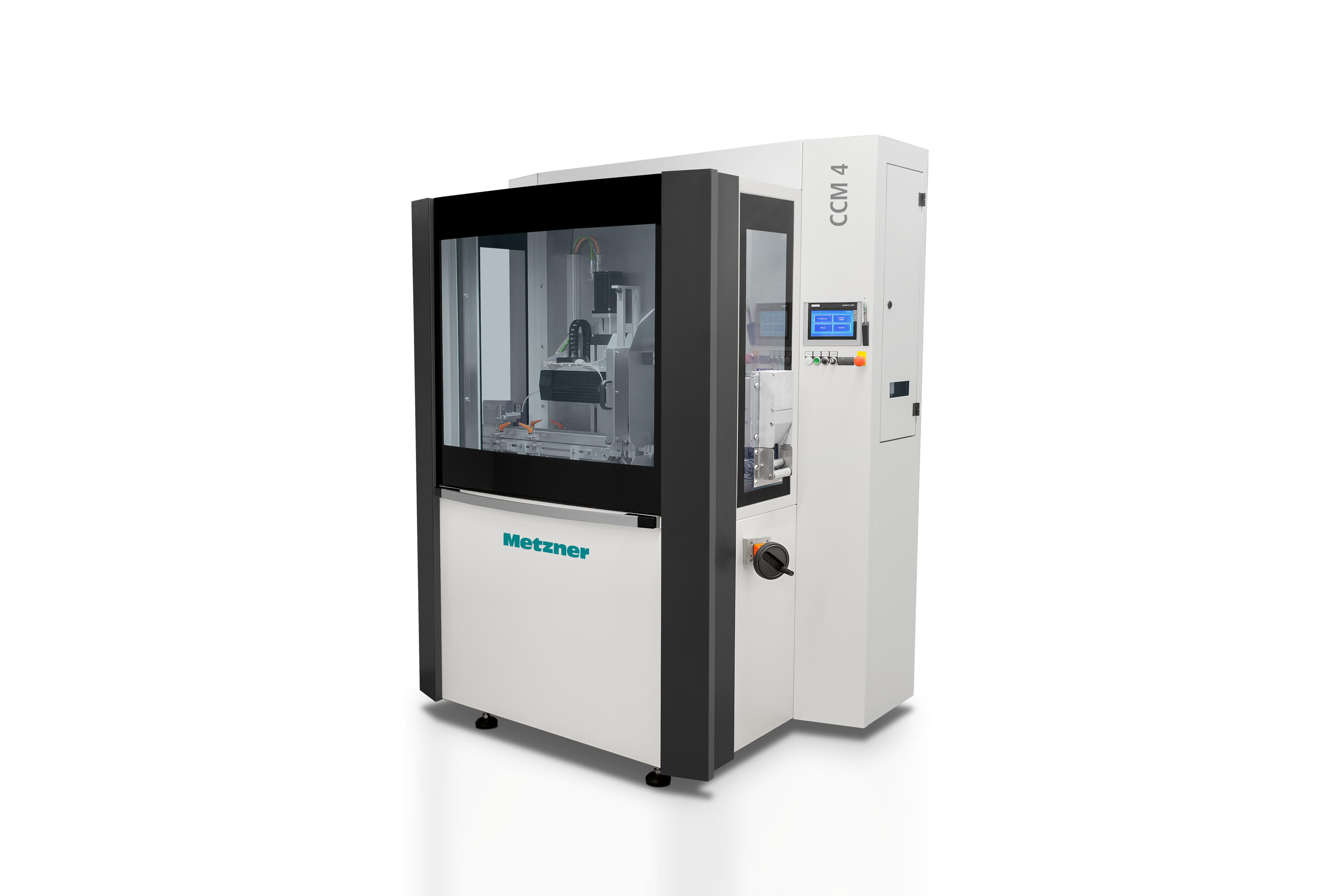

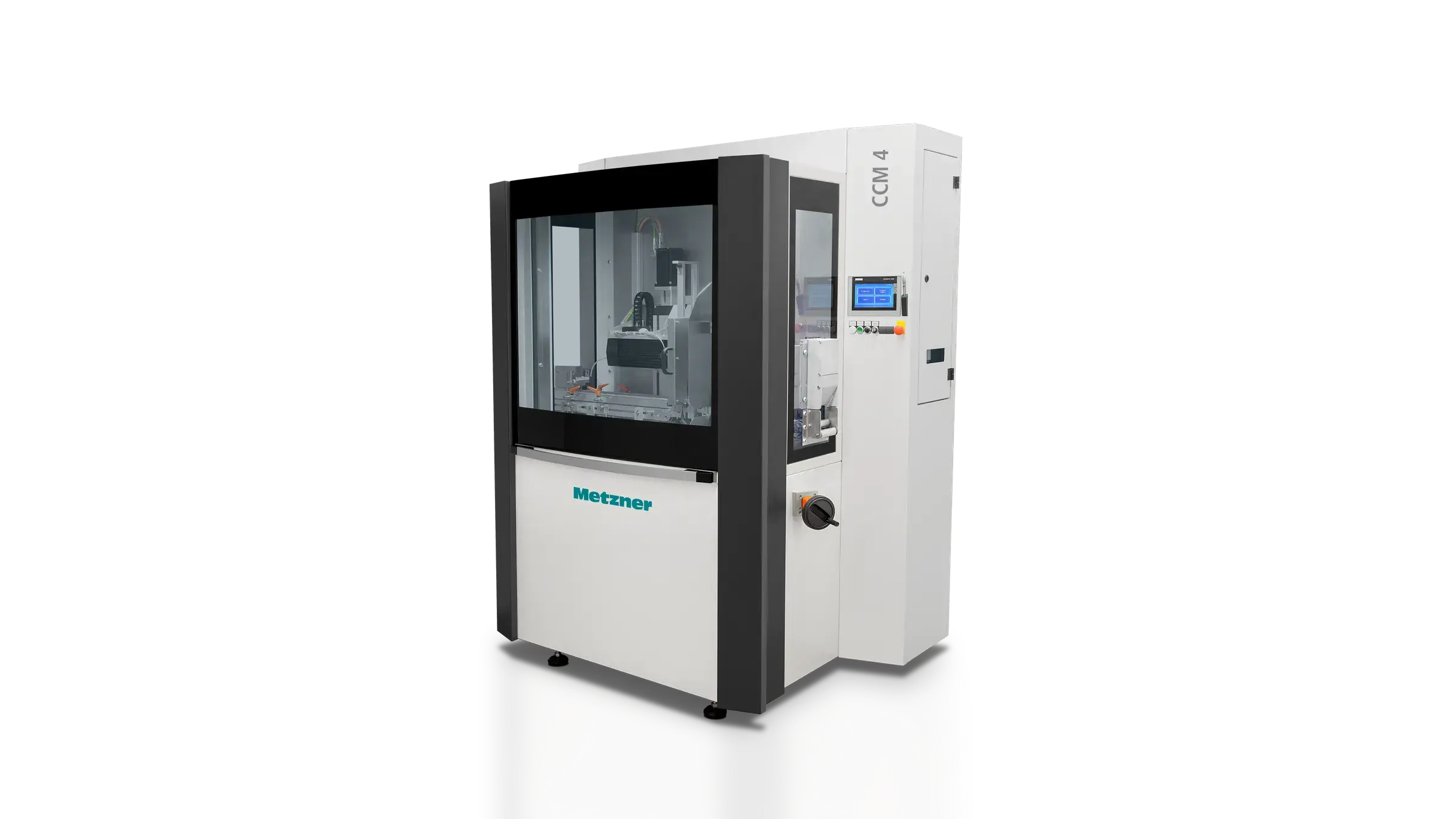

Metzner CCM4

Available with gap detection for precise, snag-free cuts in metal carriers.

Gap Detection for Burr-Free Cuts

The Metzner CCM4 is a dry or wet-cut circular-knife system engineered for steel-reinforced profiles and hoses, with optional gap detection to ensure precise, snag-free cutting of metal carriers. Equipped with a cooling water circuit, optimised guides, and the ability to integrate a secondary cutting or punching unit, it delivers high-quality, low-burr results while supporting multi-stage processing in a single machine.

Reinforced materials focused
Engineered for reliable cutting of steel-reinforced profiles, hoses, and other hard-to-process materials
High cut quality
Misting system to maintain dimensional accuracy, produce smoother finishes and reduce burring
Two processes, one machine
A secondary cutting or puching unit can be added for a secondary process in one machine

The precision option for complex reinforced profiles

The Metzner CCM4 is a circular-knife cutting system for steel-reinforced profiles and hoses where cut finish, carrier control and low-burr performance are especially important. It is designed for applications that benefit from dry or wet cutting, optimised guidance and optional gap detection to achieve precise cuts without snagging metal carriers.

The machine is suited to manufacturers processing reinforced materials with tighter quality requirements or more demanding product geometries. Compared with the CCM2, it offers greater process capability, while remaining more compact than the CCM6 where a travelling cutting head or full in-line extrusion integration is not required.

Machine choosing guide

Tell us about the material you're cutting, and we'll identify the most suitable cutting machines from our range.

CCM4 datasheet
(pdf will download or open in a new tab)

Name	Value	Description
Machine Name	CCM4
Cutting Accuracy	±1 mm + 0.2% of the cut length	Positional and repeatable cutting accuracy
Dimensions (LxWxH)	2000 x 1300 x 2300mm	Length x Width x Height
Electrical Input	3~400 Vac; 50/60 Hz; 10A	Power supply requirements
Compressed Air Input	6 Bar, 87 PSI	Required compressed air connection
Noise (idle)	75dB	Noise level during idle operation
Material Width Max	100mm	Maximum width of material that can be processed
Material Height Max	30mm	Maximum height of material that can be processed
Material Diameter Max	30mm	Maximum diameter of material that can be processed
Feeding Speed Max	120m/min	Maximum feeding speed
Cutting Performance	100cuts/min	Maximum cutting performance
