Cutting machines

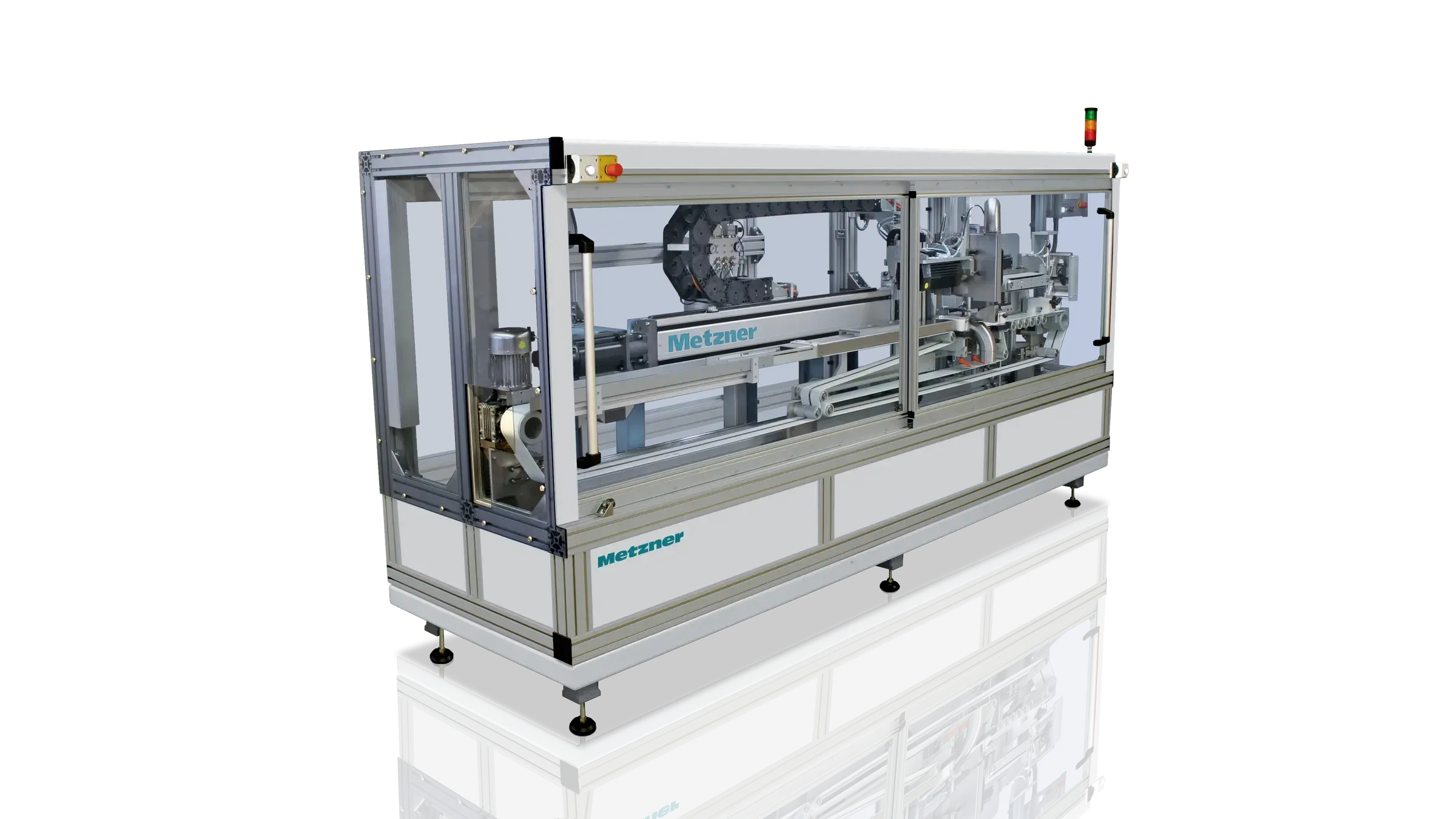

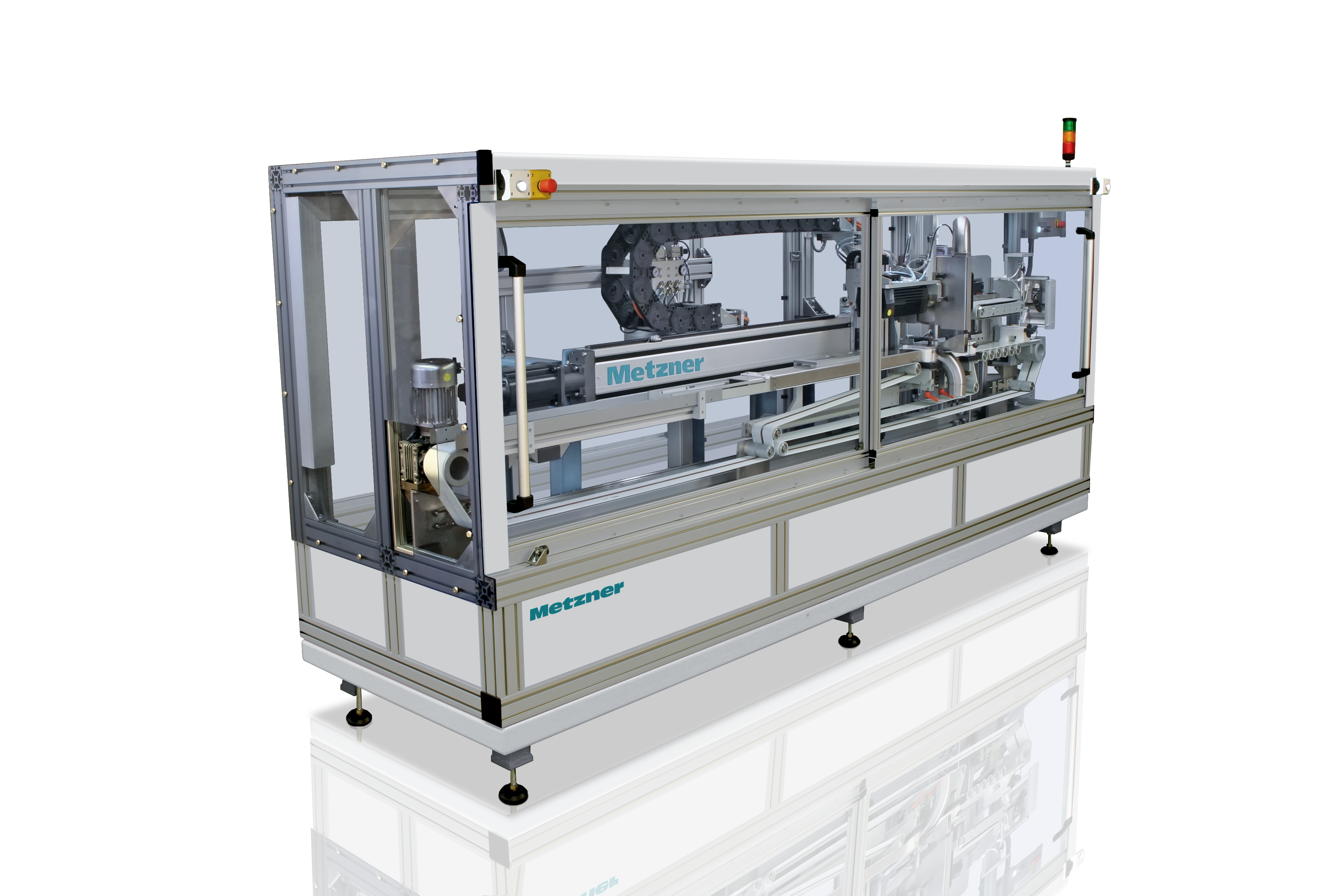

Metzner CCM6

Travelling cutting head, suitable for cutting rigid and semi-rigid materials

Accurate Cutting for Rigid Materials

The Metzner CCM6 is a circular-knife cutting system with a travelling cutting head, purpose-built for rigid and semi-rigid steel-reinforced profiles and hoses. Its in-line cutting capability, integrated secondary cutting tool, and controlled rotational speeds ensure accurate, continuous processing without stopping the material flow, making it ideal for extrusion-based production environments.

Reinforced material optimised
Built for precision cutting of steel-embedded profiles, multi-layer hoses, and similarly demanding material
Stiff material handling
Travelling cutting head allows for cutting of rigid materials without the need to stop and cut
In-process cutting
In-line cutting allows for the cutting machine to be integrated into your existing extrusion process

The in-line system for rigid reinforced products

The Metzner CCM6 is a circular-knife cutting system with a travelling cutting head for rigid and semi-rigid steel-reinforced profiles, hoses and similar heavy-duty materials. It is intended for in-line production where the material flow should remain continuous and accurate cutting must be maintained without stopping the profile for each cut.

The machine is suited to extrusion and high-throughput production environments where process continuity, rigid-material handling and integrated secondary operations are key technical requirements. Compared with the CCM2 and CCM4, the CCM6 is the higher-capability option for continuous inline processing of demanding reinforced products.

Machine choosing guide

Tell us about the material you're cutting, and we'll identify the most suitable cutting machines from our range.

CCM6 datasheet
(pdf will download or open in a new tab)

Name	Value	Description
Machine Name	CCM6
Cutting Accuracy	±1 mm + 0.2% of the cut length	Positional and repeatable cutting accuracy
Dimensions (LxWxH)	4370 x 1500 x 2200mm	Length x Width x Height
Electrical Input	3~400 Vac; 50/60 Hz; 10A	Power supply requirements
Compressed Air Input	6 Bar, 87 PSI	Required compressed air connection
Noise (idle)	75dB	Noise level during idle operation
Material Width Max	100mm	Maximum width of material that can be processed
Material Height Max	30mm	Maximum height of material that can be processed
Material Diameter Max	30mm	Maximum diameter of material that can be processed
Feeding Speed Max	60m/min	Maximum feeding speed
Cutting Performance	65cuts/min	Maximum cutting performance
